2012 R & R-Technik Volumen 20.000 Bm³/h

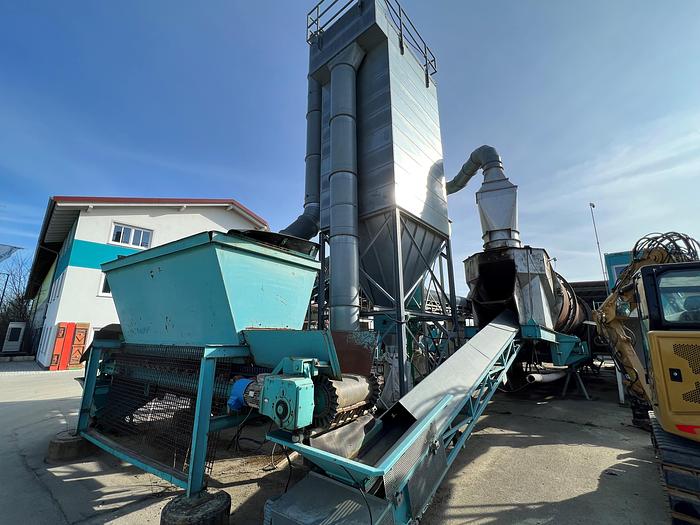

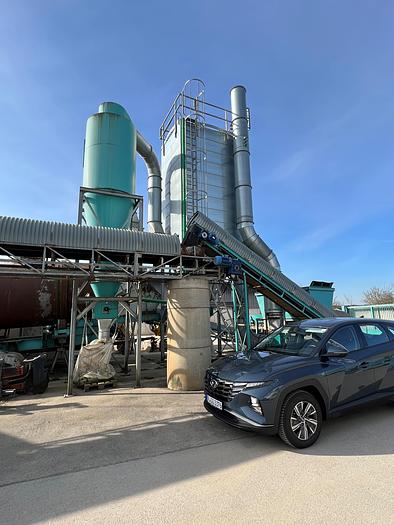

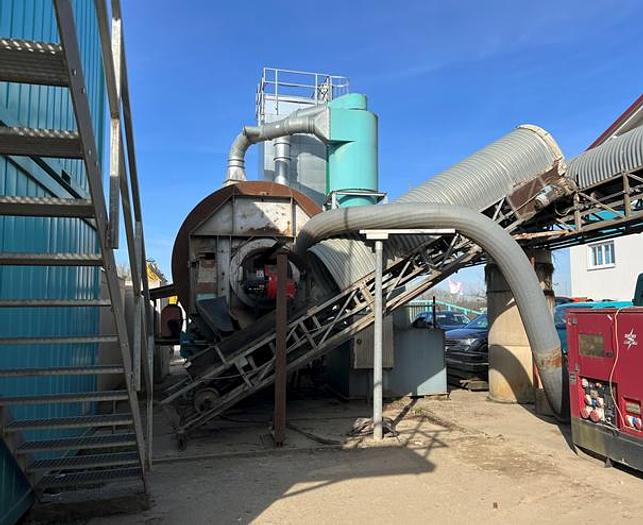

Large dust extraction for a dryer fabric (drum) System without the drum that can be seen in the pictures. Exhaust air filter with an air volume of 20,000 Bm³/h Dust property: dry, fine Raw gas dust content: max. 10 g/Bm³ Material throughput: approx. 5-20kg/h Raw gas temperature: approx. 80 - 130 °C Flow rate: 20,000 Bm³/h at 80 °C Sound requirements: none Suction pipe performance length: approx. 5m Type of disposal: BIG-BAG (1x1x1m) Clean air flow: exhaust air operation Residual dust content: <20mg/m³ based on dust Sluice filter RTF-RDWS-200-Jet Abr. Filter area: 201.06 m² Filter surface load: 99.47 m³/m²/h
