2006 PELLEGRINI FB 220

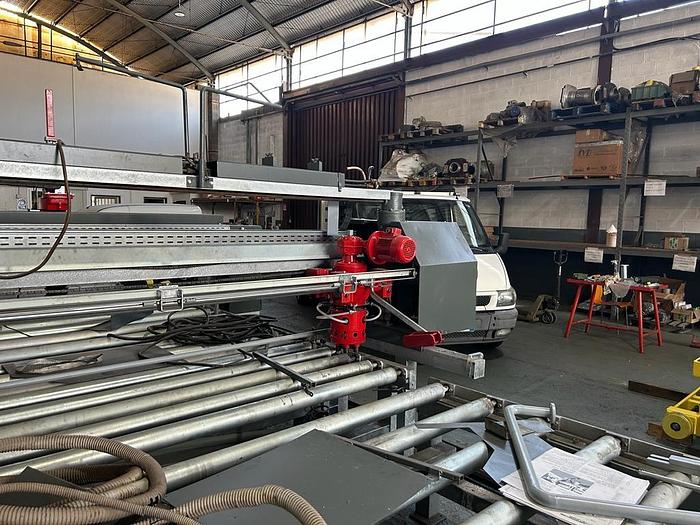

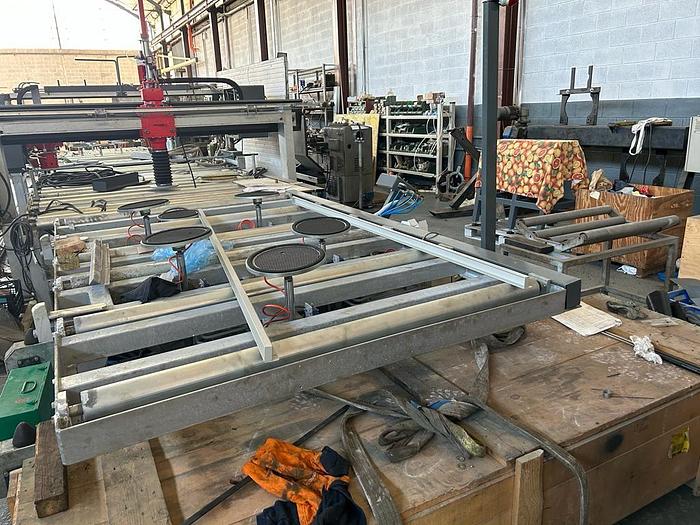

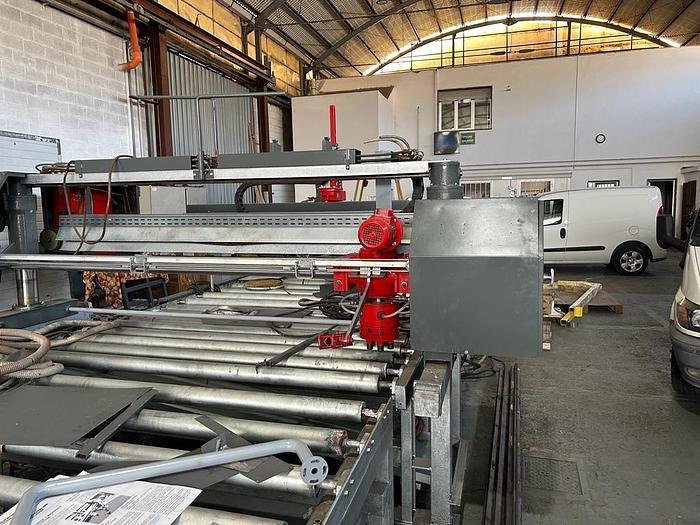

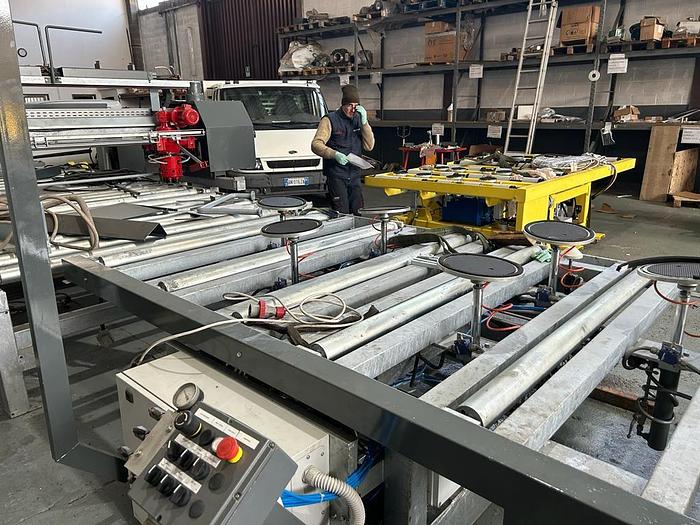

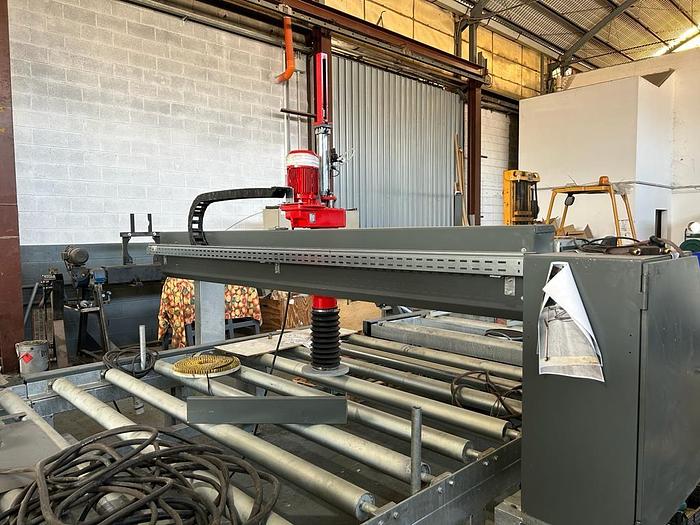

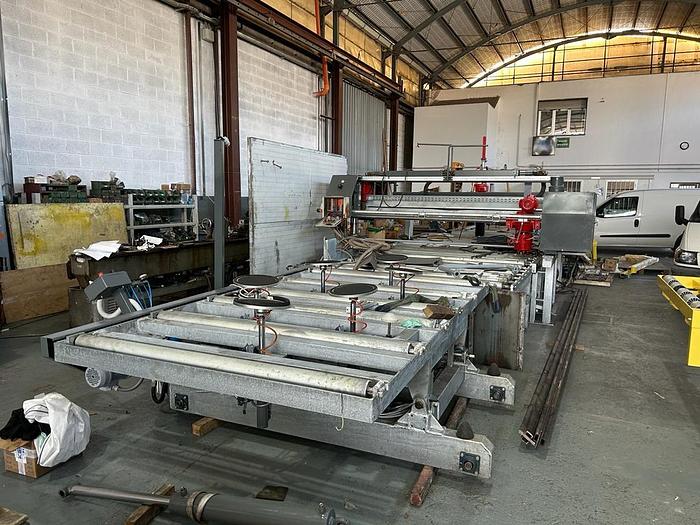

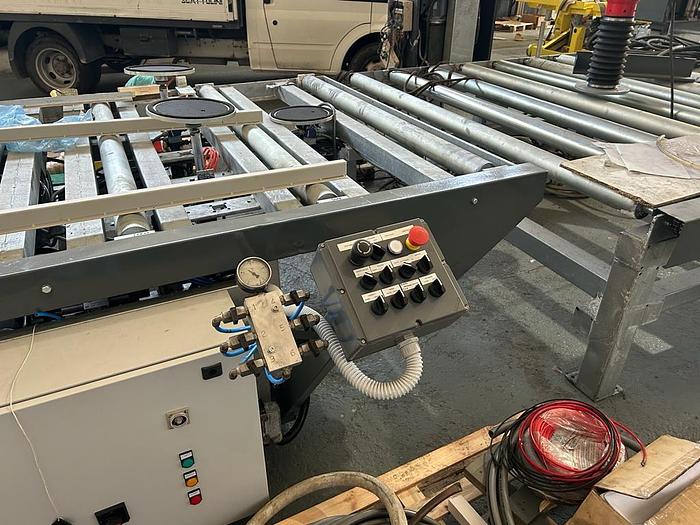

More used machines at: https://www.janssen-usedmachines.com/ New machines at: www.janssen-steintechnik.de Completely overhauled flame and stick machine for processing granite slabs with a guarantee. Machine and equipment are completely overhauled. Technical characteristics of the flame and stick machine: Automatic trolley equipped with tilting table and plate holder when loading Motorized roller conveyor: 2000 x 2300 mm (width x length) Rotating stick hammer head, equipped with n 5 hammers Ø16 mm with motorized conveyor belt Technical characteristics of the flame treatment machine: Equipped with single burner flame system Roll extension for the flame zone with dimensions: 1000 x 2200 mm Automatic trolley equipped with tilting table and plate holder when unloading - All bearings can be lubricated and have special protective seals. - The area of the roller table where the flame treatment takes place is protected by protective plates made of hot-dip galvanized steel protected. - A special quick-release hammer guide is attached to the stick hammer head with five hammers. - A water spray system is used to eliminate dust generated during curing - The flame system is equipped with safety devices: the pilot flame is controlled by a thermocouple and two temperature sensors and two gas leak detectors controlled, one near the machine (in the box) and the other near the control unit; There are two solenoid valves with manual reset on the gas/oxygen line appropriate. This is an automatic machine and the whole processing line is also automatic, including even loading/unloading the plates. The plate being processed moves continuously forward, while the bridge has an oscillating lateral movement has to ensure an even flame effect with uniform results over the entire surface of the to ensure the plate being processed. It enables very large output volumes and excellent quality. The bridge that supports the burner is Also self-adjusting in height, so it is not necessary to use the machine for height adjustment to stop, even if the panels to be processed have different thicknesses. The burner system is attached to machines consisting of a set of nozzles that cover the entire plate width, with flame monitoring unit. The panels are fed longitudinally via a belt with a continuously variable speed drive. All Components of the flame system are built and include the latest standards and norms (Atex). Safety systems that block the flow of gas and oxygen in an emergency, such as: E.g. gas leak, pilot light out and similar. An automatic sandblasting machine using river or quartz sand, equipped with a water system to reduce dust and with a soundproof cover. The line is finished with. - No.: 01 Automatic trolley suitable for loading panels. The model is mainly used for handling Granite slabs and compact materials generally used. The working area of the trolley is marked and the m/c electrical control panel is located outside the Danger area. - No.: 01 Automatic trolley for unloading panels. Used for handling panels of all materials. The default maximum load is 1000 kg/max. Is loading. - No.: 02 Coordinated motorized roller conveyor equipped with rollers only for loading and unloading panels - No.: 01 The electrical control panel allows coordination with the other machines on the line. Including . No.: 01 Automatic trolley for loading plates No.: 01 Motorized roller conveyor No.: 01 Granite slabs flame and freeze - Brand PELLEGRINI Meccanica No.: 01 Brush unit for plate cleaning No.: 01 Motorized roller conveyor No.: 01 Automatic trolley for unloading the panels No.: 01 Double flame outlet, equipped with pipes and devices for correct gas supply
